QUADCOPTER Kit

F450 Quadcopter Kit is 450mm Frame Kit made from ABS and Glass Fiber Material. The arms have support ridges to improves stability. The frame is strong and light weight. It is integrated with PCB (Printed Circuit Board) to directly solder ESC‘s to the Quadcopter.

Package Content
  • Quadcopter Frame
  • Blades
  • Battery
  • RC Remote with Receiver
  • GPS
  • Flight Controller
  • Buzzer
  • ESC

Specifications of quadcopter - 450mm frame:

Specifications of flight controller:

Pixhawk V2.4.8 Flight board:
  • The advanced 32-bit ARM CortexM4 high-performance processors can run Nux RTOS real-time operating system.
  • 14 PWM / servo output.
  • Bus interface (UART, I2C, SPI, CAN).
  • The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
  • Provide automatic and manual modes.
  • Provide redundant power input and failover.
  • Multicolor LED lights.
  • Provide a multi-tone buzzer Interface.
  • Micro SD recording flight data.
Processor:
  • 32bit STM32F427 Cortex M4 core with FPU.
  • 168 MHz.
  • 128 KB RAM.
  • 2 MB Flash.
  • 32-bit STM32F103 failsafe co-processor.
Sensors:
  • ST Micro L3GD20H 16 bit gyroscope.
  • ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
  • Invensense MPU 6000 3-axis accelerometer/gyroscope.
  • MEAS MS5607 barometer.
Interfaces:
  • 5x UART (serial ports), one high-power capable, 2x with HW flow control.
  • 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
  • Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
  • Futaba S.BUS® compatible input and output.
  • PPM sum signal input.
  • RSSI (PWM or voltage) input.
  • 12C.
  • SPI.
  • 3 and 6.6V ADC inputs.
  • Internal micro USB port and external micro USB port extension.
NEO-M8N GPS Module:
  • Receiver type 72-channel Ublox M8 engine.
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
  • SBAS L1 C/A: WAAS, EGNOS, MSAS.
  • Galileo-ready E1B/C (NEO-M8N).
  • update rate1 Single GNSS: up to 18 HZ.
  • Concurrent GNSS: up to 10 Hz.
  • Position accuracy2 2.0 m CEP.
  • Acquisition2 Cold start: 26 s.
  • Aided starts: 2 s.
  • Reacquisition: 1.5 s.
  • Sensitivity2 Tracking & Nav: –167 dBm.
  • Cold start: –148 dBm.
  • Hot starts: –156 dBm.
  • Assistance AssistNow GNSS Online.
  • Assist Now GNSS Offline (up to 35 days)3.
  • Assist Now Autonomous (up to 6 days).
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q).
  • Crystal (NEO-M8M).
  • RTC crystal Built-In.
  • Noise figure On-chip LNA (NEO-M8M). Extra LNA for lowest noise figure (NEO-M8N/Q).
  • Anti-jamming Active CW detection and removal.
  • Extra onboard SAW bandpass filter (NEO-M8N/Q).
  • Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
  • Supported antennas Active and passive.
  • Odometer Travelled distance.
  • Data-logger for position, velocity, and time (NEO-M8N).
APM 2.5.2/2.6/2.8 Pixhawk Power Module:
  • Max input voltage: 28V
  • Max current sensing: 90A
  • Voltage and current measurement configured for 5V ADC
  • Switching regulator outputs 5.3V and 3A max
  • 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
  • Support 6S battery
Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:
  • Color: Black
  • Material: Rubber and Fiber
  • Suit for different open-source flight controller, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
GPS Folding Base Antenna set:
  • Material: CNC Aluminum alloy, carbon glass fiber rod
  • Mounting rod diameter: 4mm
  • length of rod: 14 cm.
  • GPS plate diameter: 40 mm.
  • Base plate diameter: 35 mm
  • Mounting hole spacing: 16-35mm
  • Weight: 20g
  • Colour: Anodised black
  • Note: Adhesive Pad is not included.
Specification of battery:
Specification of remote and receiver:
Transmitter Specifications:
  1. Model Type: Glider/Heli/Airplane
  2. Band: 142
  3. 2.4 GHz System: AFHDS 2A and AFHDS
  4. Code Type: GFSK
  5. DSC Port: PS2;
  6. Output: PPM
  7. Charger Port: No
  8. ANT length: 26mm*2(dual antenna)
  9. Online update: Yes
  10. Certificate: CE0678, FCC
  11. Model Memories: 20
  12. Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4, Ch 5 & 6 open to assignment to other functions.
Receiver Specifications:
  1. Channel: 6 CH
  2. Frequency Range: 2.4055–2.475 GHz.
  3. Band Width Number: 140
  4. Transmitting Power: ≤ 20 dBm.
  5. RF Receiver Sensitivity: 105 dBm.
  6. 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system.
  7. Encoding: GFSK.
  8. Antenna Length: 2 x 26 mm (dual antenna).
  9. Input Power: 4.0 – 8.4 VDC (2A).
  10. Dimension: 47 x 26.2 x 15 mm
  11. Weight: 14.9 gm.
  12. Data Acquisition Interface: Yes.
  13. Model Type: Airplane / Glider / Helicopter.
  14. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G.

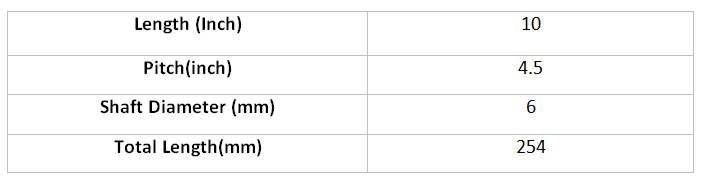

Specifications of propeller:

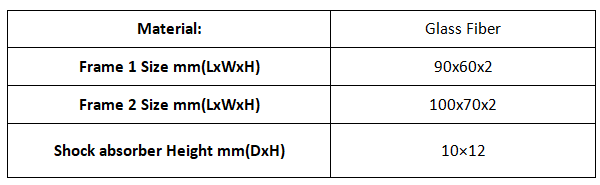

Specifications of mount:
